Mounting both trims for the rear window frame on the side

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the cover for the side rear window frame

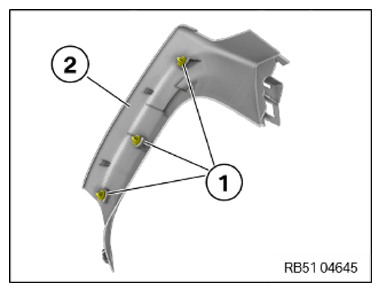

Check the clips (1) the cover for the side rear window frame (2) for damage; replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the cover for the side rear window frame (1) and clip it in on the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.
