Installing transmission cross member

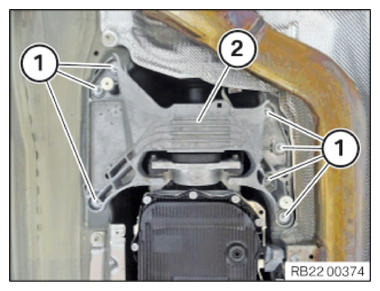

• Install the transmission cross member (2).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Transmission cross member to body
  M8	tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the luggage strap (1) from the transmission.

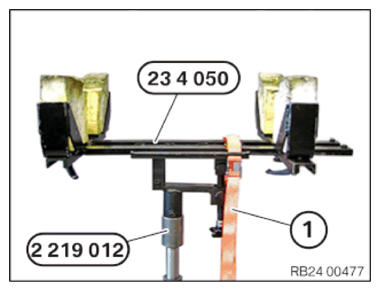

• Remove the special tools 0 495 498 (23 4 050)  and 2 219 012  from the transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
