Installing the trim strip at the rear window
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

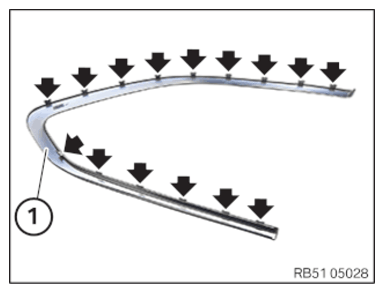

- Check retaining lugs (arrow) for damage; replace if necessary.
The retaining lugs (arrows) must not be bent or missing.
- Be sure that the trim strip (1) is not bent.

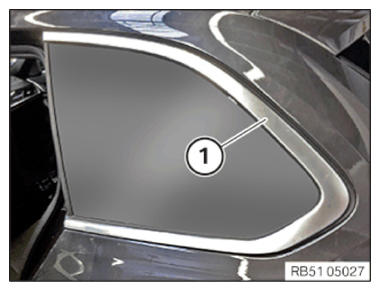

- Correctly position the trim strip at the side window (1) and press the seal in carefully.
