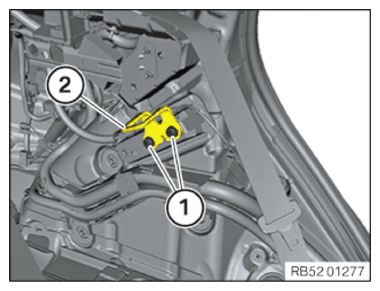

Installing the locking clip of the rear seat backrest

• Position the locking clip (2) and tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Locking bracket to body
Oval-head screw	tightening torque	42 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
