Installing the door sill cover strip on the rear left and right

NOTE: The operations shown only for one side must be carried out on both sides.

Install the rear door sill cover strip

NOTE: Description is for left component only. Procedure on the right side is identical.

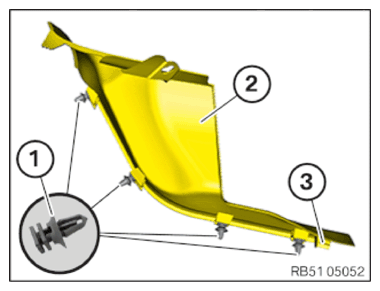

Remove the remaining clips (1) in the body and mount them at the door sill cover strip (3).
Check the clips (1) and the guide (2) for damage, replace if necessary.
Check the clips (1) and the guide (2), they must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

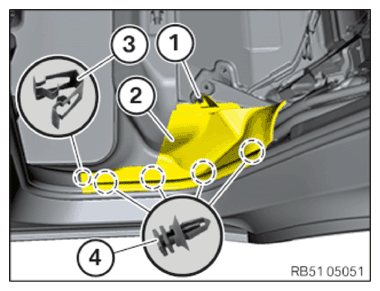

Position the rear door sill cover strip (2) on the body.
Engage the rear door sill cover strip (2) at the clamp (3) and the clips (4).

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Door sill cover strip to body
Plastic nut	Tightening torque 3 Nm
