Installing door sill cover strip at front left and right

NOTE: The operations shown only for one side must be carried out on both sides.

Install the front door sill cover strip

NOTE: Description is for left component only. Procedure on the right side is identical.

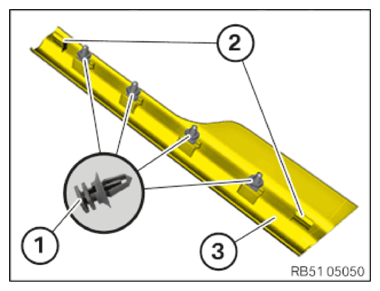

Remove the remaining clips (1) from the body and attach to the front door sill cover strip (3).
Check the clips (1) and guides (2) for damage, and replace as needed.
The clips (1) and guides (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

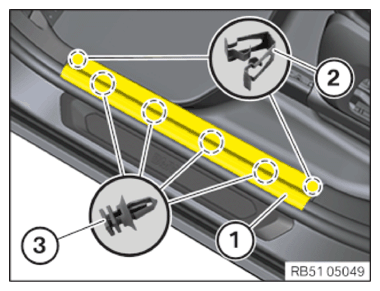

Position front door sill cover strip (1) on body.
Lock front door sill cover strip (1) using clamps (2) and clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.
