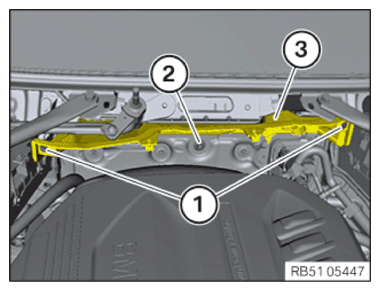

Install the second end panel underneath
- Feed in and add the second panel (3) underneath.
- Tighten the screws (1) and the nut (2).
TIGHTENING TORQUES SPECIFICATION
| Bulkhead lower part |
| Hexagon screw |
Tightening torque
3 Nm |
| Plastic nut |
Tightening torque
2.6 Nm |
