Install the cylinder head cover acoustic cover

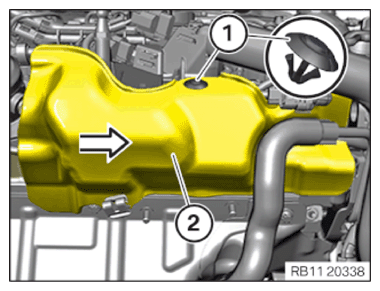

• Carefully insert the acoustic cover (2) in arrow direction and install it.
• Check the clip (1) for damage and replace if necessary.
• Secure the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

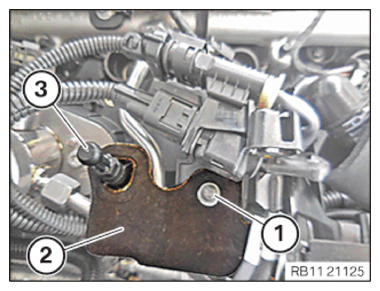

• Feed in and position acoustic cover (2) at ball hub (3).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Acoustic cover (side) to cylinder head cover
  TS6 x 20	tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

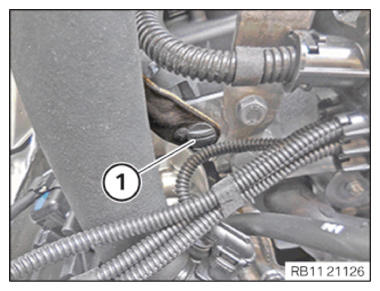

• Secure the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
