Install the bottom left and right B-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the lower B-pillar trim panel

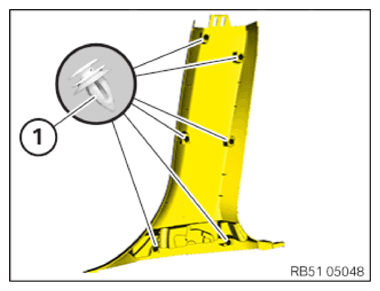

Check the clips (1) for damage and replace if necessary.
The clips (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

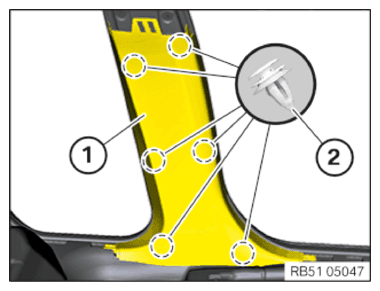

Guide in the lower B-pillar trim panel (1) and connect the associated connector if necessary.
Clip the lower B-pillar trim panel (1) into the clips (2).
Position the lower B-pillar trim panel (1) correctly at the edge protection in the front and rear.

Courtesy of BMW OF NORTH AMERICA, INC.
