Install all ignition coils

NOTE: The description is for one component only. The procedure is identical for all further components.

Install ignition coil

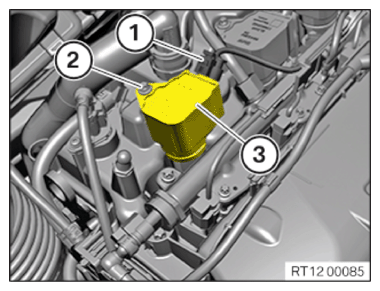

Install ignition coil (3).
Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION

Ignition coil

screw Tightening torque
8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

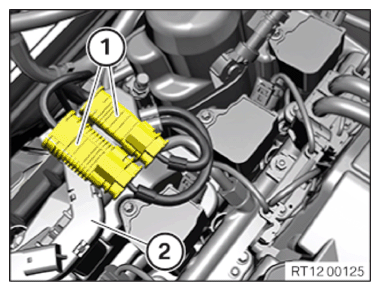

Mount the connector (1) of the Lambda oxygen sensor and the oxygen sensor monitor on the cable duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Ignition coil
screw	Tightening torque 8 Nm
