Fitting the wishbone, right, at the swivel bearing

Secure the wishbone at the swivel bearing

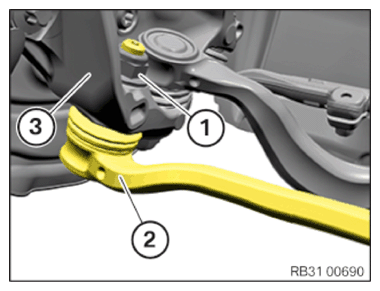

• Position the wishbone (2) on the swivel bearing (3).
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).

  Counter-hold at the Torx socket.

  TIGHTENING TORQUES SPECIFICATION



  Wishbone to swivel bearing
  M16 Replace nut.	Joining torque  100 Nm Angle of rotation  90°

  Courtesy of BMW OF NORTH AMERICA, INC.

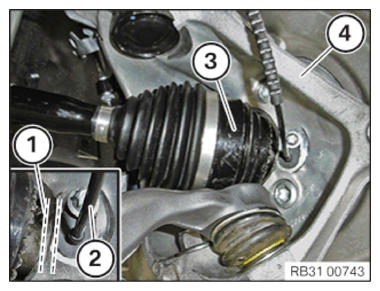

• Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
• Position output shaft (3) on the swivel bearing (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cable for the wheel speed sensor (2).
  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
• Clip the cable for the Dynamic Damping Control into the holders (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

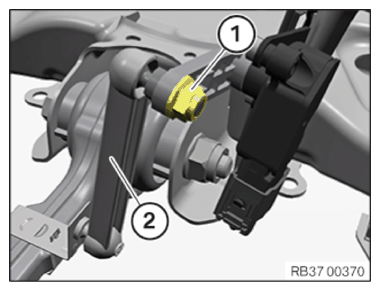

• Position connecting rod (2) at the ride height sensor.
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
