Fasten the output shaft on the wheel bearing

NOTE: TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.

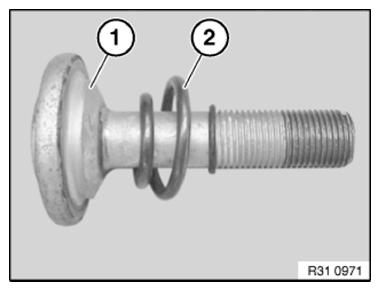

• Replace the collar screw (1) and compression spring (2).

  Parts:  Collar screw and compression spring

• Note installation position of compression spring (2).
• Keep the collar screw (1) and the front gearings of the wheel bearing and the output shaft clean and free of grease.

  Courtesy of BMW OF NORTH AMERICA, INC.

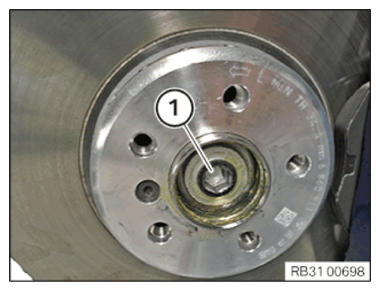

• Hand-tighten the collar screw (1) with the compression spring.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION

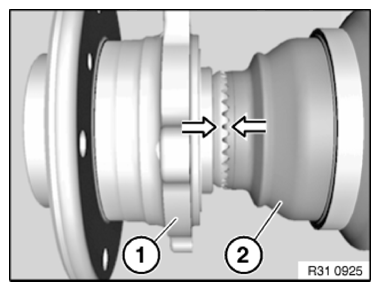

  The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
• Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).
• Press brake pedal.
• Tighten the collar screw.

TIGHTENING TORQUES SPECIFICATION

Output shaft to wheel bearing
M16 Replace collar screw and spring.	Joining torque  210 Nm Angle of rotation  90°

Courtesy of BMW OF NORTH AMERICA, INC.
