Attaching the left and right tension struts on the swivel bearing
NOTE:
Perform the steps on the left and right side.

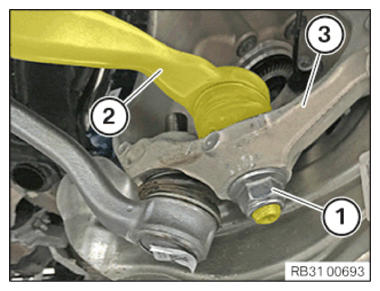

Securing tension strut on swivel bearing
- Position tension strut (2) on swivel bearing (3).
Replace nut (1).
- Parts: Nut
- Tighten nut (1).
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUES SPECIFICATION
| Tension strut to swivel bearing | |
| M16 Replace nut. |
Joining torque 100 Nm Angle of rotation 90° |
