Remove engine ventilation line
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see: SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
- For additional information see: NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .

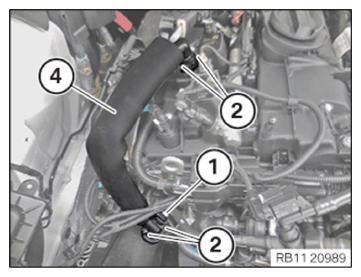

- Unlock and release the plug connection (1).
- Unlock the locking mechanisms (2) of the top engine ventilation line (4) and detach it from the cylinder head cover.
- Unlock the locking mechanisms (2) of the engine ventilation line (4) upwards from the clean air pipe and release.
- Feed out the engine ventilation line (4) and remove.
