Remove engine ventilation line
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .

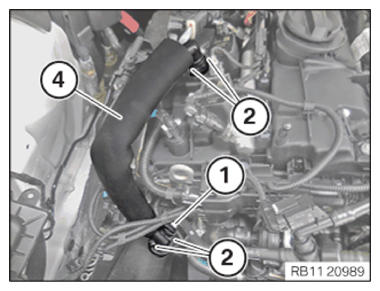

- Unlock and release the plug connection (1).
- Unlock the locking mechanisms (2) of the top engine ventilation line (4) and detach it from the cylinder head cover.
- Unlock the locking mechanisms (2) of the engine ventilation line (4) upwards from the clean air pipe and release.
- Feed out the engine ventilation line (4) and remove.
