Remove engine ventilation line
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING RESONATOR .

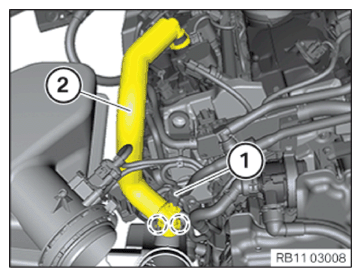

- Unlock connector (1) and detach.
- Unlock the top engine ventilation line (2) and detach it off the cylinder head cover.
- Unlock marked locks and pull the engine ventilation line (2) off the clean air pipe to the top.
