Installing the control unit holder

• Make sure that the control unit bracket (1) is inserted below correctly into the mount (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the control unit bracket (2) in arrow direction.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Control unit bracket at the shock tower
  Hexagon screw	tightening torque	8 Nm

• Mount the cable bracket (1) together with the wiring harnesses and lock it audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) to the control unit bracket (2) and lock it.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the cable clip (1) with the control unit holder (2) and lock it.

  The lock (arrow) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

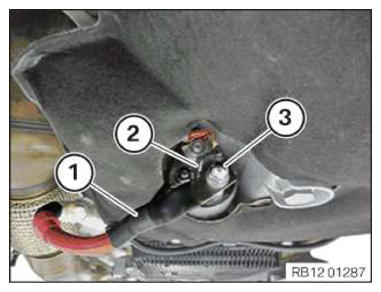

• Connect and lock the connector (2) on the control unit bracket (3).

  The connector (2) must engage audibly.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) with the control unit bracket (2) and lock it.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the clamp (2).
• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
