Fuse And Relay Location -- (X3 G01 & X3 M F97)
>>
Fuse And Relay Location (X3 G01)
>>
Z44_1 Relay, Terminal 30B
Z44_1 Relay, Terminal 30B

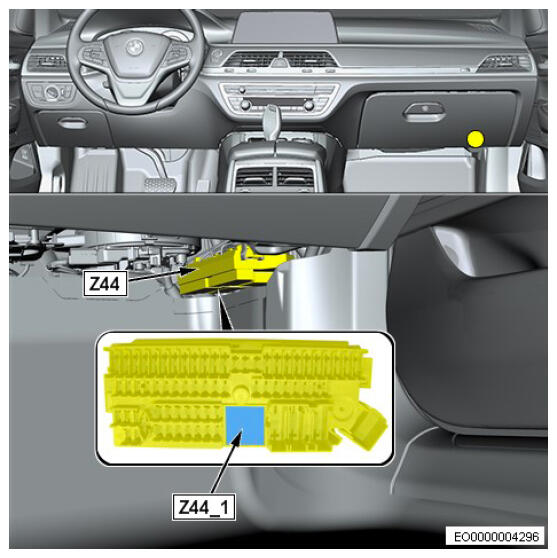

Fig 1: Z44_1 Relay, Terminal 30B Fuse/Relay ID'S Location
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
