Fuse And Relay Location -- (X3 G01 & X3 M F97)
>>
Fuse And Relay Location (X3 G01)
>>
Z2A Power distribution box, rear
Z2A Power distribution box, rear

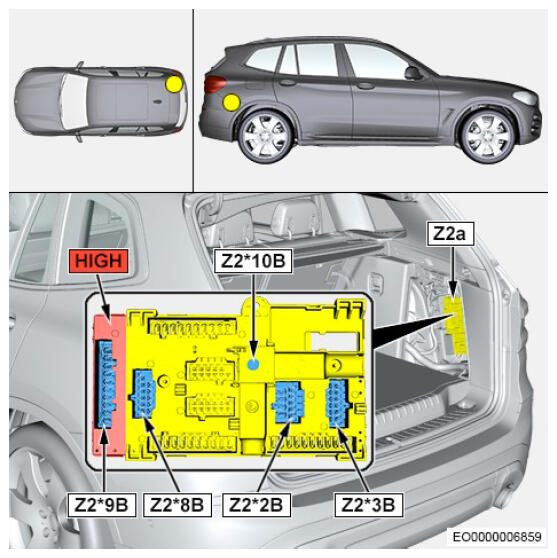

Fig 1: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (1 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

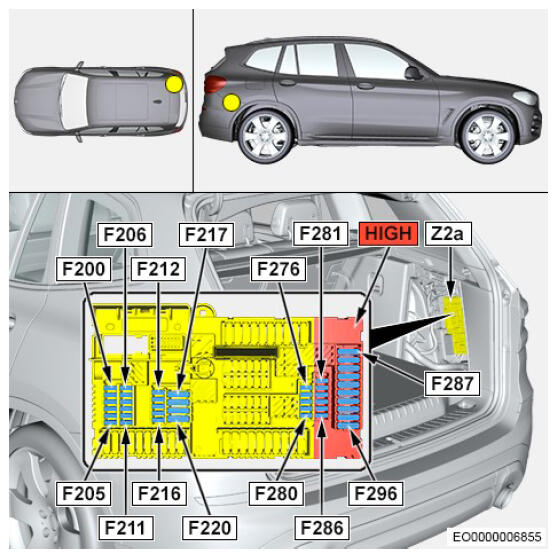

Fig 2: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (2 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

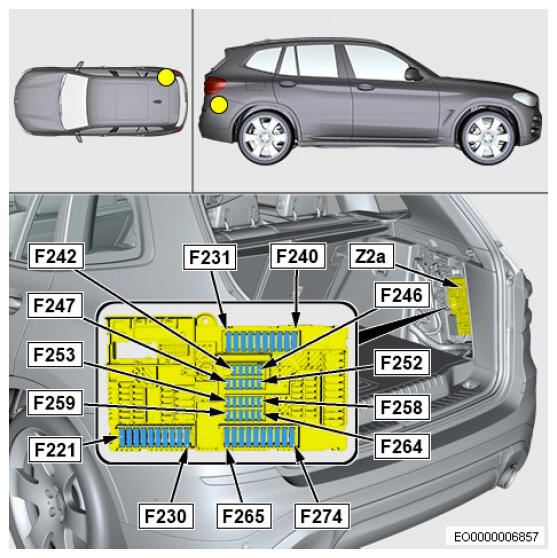

Fig 3: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (3 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

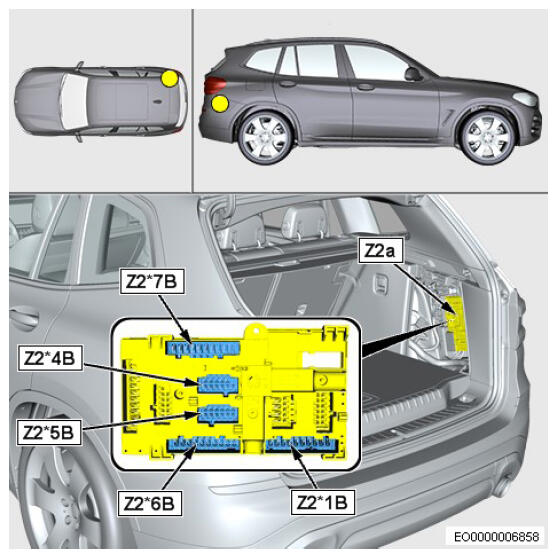

Fig 4: Z2A Power Distribution Box, Rear Fuse/Relay ID'S Location (4 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
