Fuse And Relay Location -- (X3 G01 & X3 M F97)
>>
Fuse And Relay Location (X3 G01)
>>
Z11 Integrated supply module
Z11 Integrated supply module

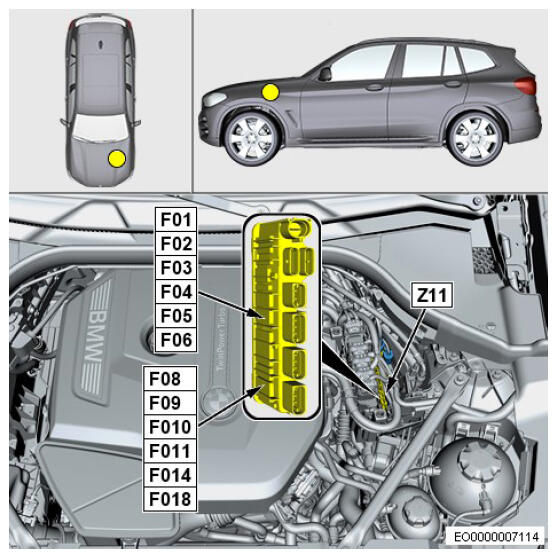

Fig 1: Z11 Integrated Supply Module Fuse/Relay ID'S Location (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

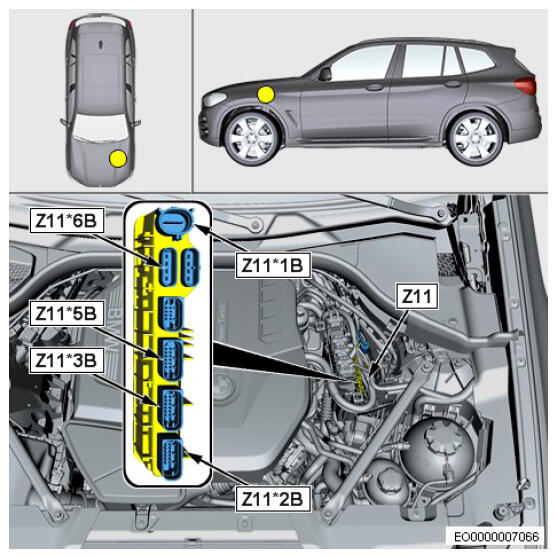

Fig 2: Z11 Integrated Supply Module Fuse/Relay ID'S Location (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
