Remove rear spoiler
Preliminary work
- Remove the top rear window frame TRIM .
- Remove side rear window frame both TRIM PIECES .

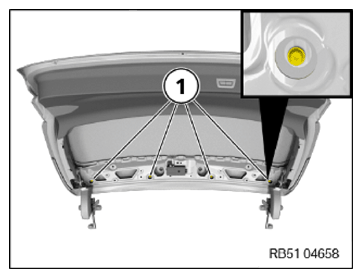

- Loosen screws (1).
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

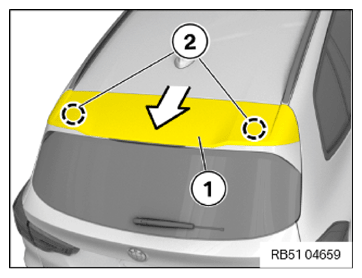

- Slightly lift the rear spoiler (1) in the area of the roof edge and release from the detents (2) in arrow direction.
- Remove the rear spoiler (1).
