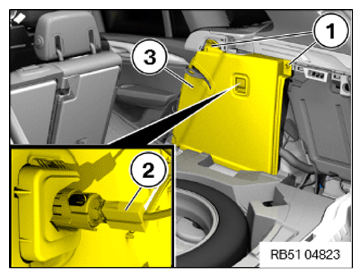

Installing the luggage compartment wheel arch trim panel on the right

• Insert the luggage compartment wheel arch trim panel (3).
• Connect plug connection (2) at the 12 V power socket.
• Clip in the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install right seat belt finisher STRIP COVER .
• Install the flap in the right luggage compartment TRIM PANEL .
• Install luggage compartment ROLLER COVER .
