Body Equipment -- Repair (2 Of 2) (G01)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 145 Removing and installing/replacing roller cover for luggage compartment (X3)
>>
Remove the roller cover for luggage compartment
Remove the roller cover for luggage compartment

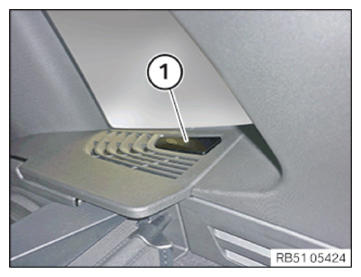

Press the release button (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Remove the roller cover for luggage compartment (1) first on the right and then on the left from the holders.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
