Lower the headlining on the left or right
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Remove the interior rearview mirror COVERS .
- Remove the interior REARVIEW MIRROR .
- Remove the left hands-free MICROPHONE .
- Remove the roof FUNCTION CENTER (FZD).
- Remove SUN VISOR .
- Remove the sun visor counter SUPPORT .
- Remove the front left or right vanity MIRROR LIGHT .
- Remove a-pillar TRIM PANEL .
- Remove the left or right HOLDER .
- Remove the b-pillar TRIM PANEL upwards.
- Remove rear interior ROOF LIGHT .
- Remove c-pillar TRIM PANEL .
- Remove the d-pillar TRIM PANEL .
Prerequisite
The front seat is adjusted all the way down.
- Loosen the frame (1) at the clips (2).
- If necessary, loosen the cable clip from the frame (1).
- Unclip headlining (1) out of clips (2) downwards.
- Guide out the headlining at the respective edge protection.

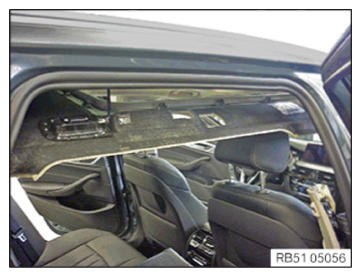

- Lower the headlining and place it onto the head restraints as shown.
