Remove vibration absorber on the trunk lid
Preliminary work
- Remove the power TAILGATE SWITCH .
- Remove the trunk lid LIGHT .
- Remove both trunk lid COVERS .
- Remove the top rear window frame TRIM .
- Remove both side rear window frame TRIM PIECES .
- Remove tailgate TRIM PANEL .
NOTE:

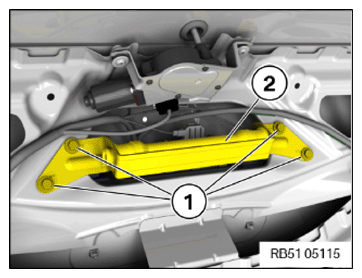

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Release the screws (1) and remove the vibration absorber on the trunk lid (2).
