Removing the left and right ornamental grille on the front bumper cover laterally

NOTE: Description is for left component only. Procedure on the right side is identical.

→ Remove the ornamental grille from the front bumper cover laterally

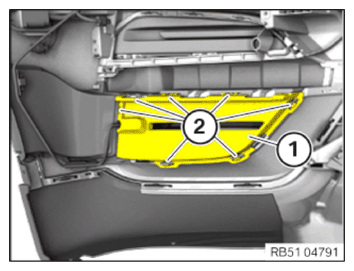

Unclip and remove cover (1) of the air inlet from the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

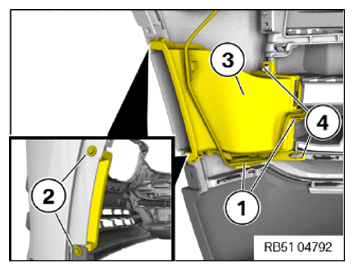

Loosen screws (2).
Loosen wiring harness from the clamp connections (1).
Release and remove air duct (3) from the detents (4).

Courtesy of BMW OF NORTH AMERICA, INC.

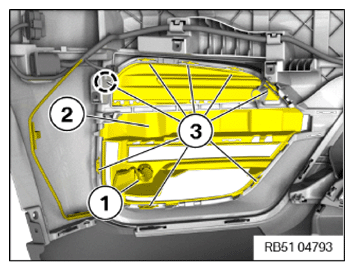

Disconnect the connector (1).
Release and remove ornamental grille (2) from the detents (3).

Courtesy of BMW OF NORTH AMERICA, INC.

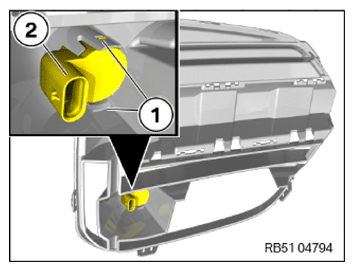

Slightly spread the detents (1) and guide out the ultrasonic sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
