Installing the rear emblem

NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For ADDITIONAL INFORMATION see: 51 00... Notes on component bonding with adhesive tape

Replace the emblem.
Parts: Emblem

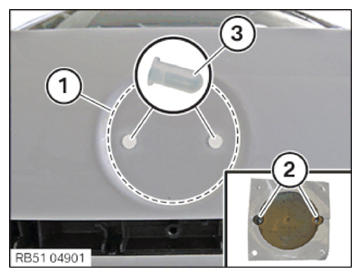

Remove any adhesive residue from the body and clean the bonding surface (1).
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Check the guide pins (2).
The guide pins (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the grommets (3).
Parts: Grommets
Coat the guide pins (2) using lubricant.
INSTALLATION AID

Lubricants G14 900 ml, Can 83232360412
Detach the liner from the adhesive strip of the BMW nameplate.

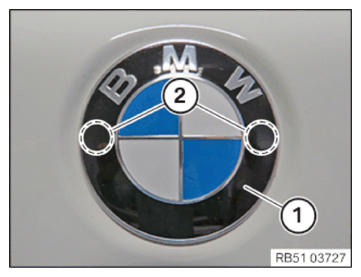

Press the emblem (1) onto the guide pins (2) and on the adhesive strip.

Courtesy of BMW OF NORTH AMERICA, INC.
