Installing the bumper cover lower section

• Guide in tether.

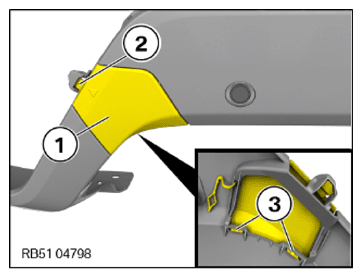

• Clip cover (1) of towing eye into detents (2) and (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

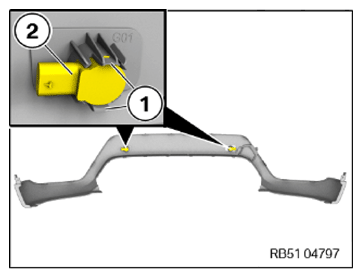

• Slightly spread apart the detents (1) and insert the ultrasonic sensors (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

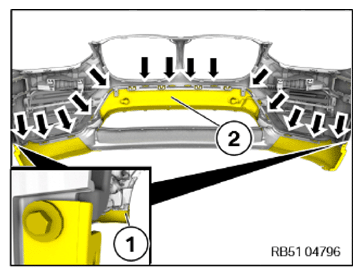

• Clip bumper cover lower section (2) into detents.
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Bumper trim panel lower part
  Screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

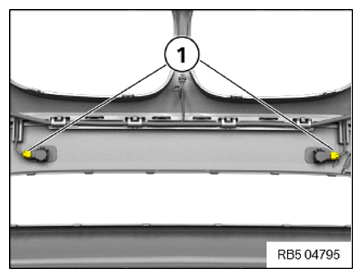

• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
