Connect the coolant lines for the high-temperature coolant circuit
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

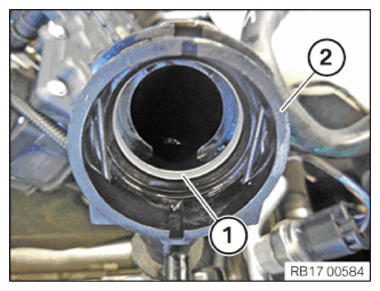

- Check the sealing rings (1) of the coolant lines (2) for damage and replace them if necessary.
- Connect and lock coolant line (1).
The coolant line (1) must audibly engage.
- Connect and lock coolant line (1).
The coolant line (1) must audibly engage.
Follow-up work
- Install the engine front ACOUSTIC COVER .
- Install RESONATOR .
- Install ACOUSTIC COVER .
- Fill the high-temperature COOLING SYSTEM with the vacuum fill equipment.
- Vent the HIGH-TEMPERATURE COOLANT SYSTEM .
- Check the HIGH-TEMPERATURE COOLING SYSTEM for water tightness.
- Install the center UNDERBODY PROTECTION .
- Install the front UNDERBODY PROTECTION .
