Installing the Central Information Display (CID)

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
  • Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
  • Read and comply with user information on using the associated special tool 12 7 060.
  • Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
  • Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
  • For additional information, see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
TIGHTENING TORQUES SPECIFICATION

Central information display (CID)
Thermoplastic oval head screw Tightening torque  1.8 Nm

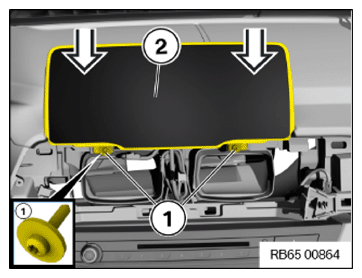

G14302009Courtesy of BMW OF NORTH AMERICA, INC.

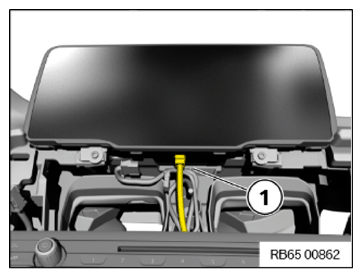

G14302007Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
