Installing the holder for the thermostat on the transmission oil lines

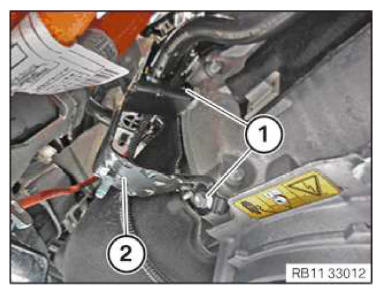

- Feed in and position holder (2).
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION

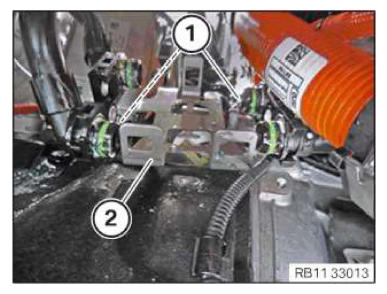

Thermostat holder to engine M6X16 Tightening torque 8 Nm - Feed in and position holder (2).
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Holder of high-voltage cable to automatic transmission M6X12 Tightening torque 8 Nm
