Installing the heat shield on the cylinder head

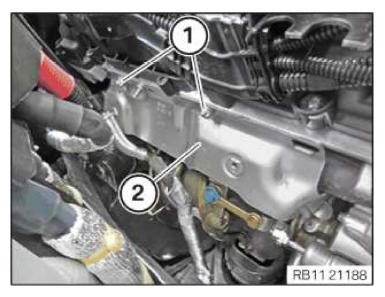

- Thread in the heat shield (2) and position.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Heat shield to cylinder head M8x12 Tightening torque 19 Nm - Version without Real Driving Emissions 2 (-SA1DZ):

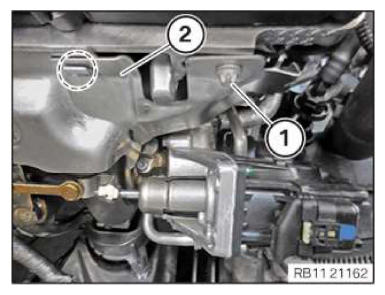

Feed the heat shield (2) into the marked area and install it.
Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATIONHeat shield to cylinder head M8x12 Tightening torque 19 Nm - Version without Real Driving Emissions 2 (-SA1 DZ):

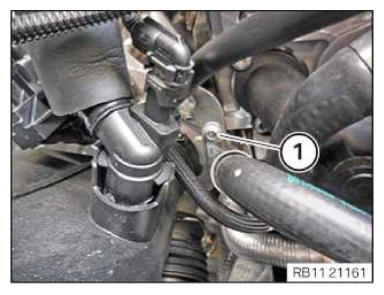

Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATIONHeat shield to trim strip M6 x 12 Tightening torque 8 Nm
