Removing cover on the exhaust system

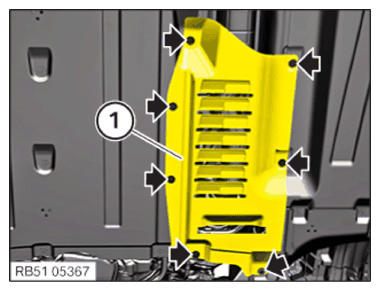

Remove screws (arrows).
Guide out and remove the cover (1).

G14462677

Courtesy of BMW OF NORTH AMERICA, INC.
