Installing the bottom right D-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

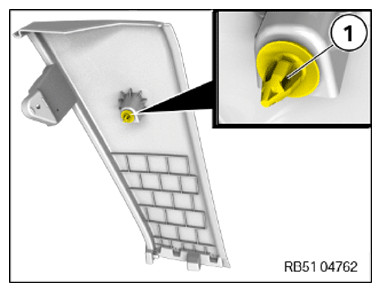

• Check the clip (1) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

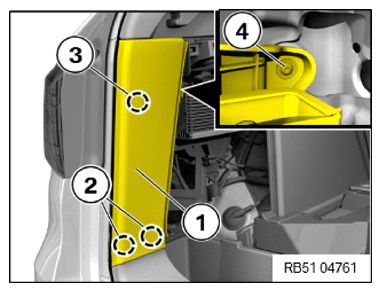

• Feed the bottom D-pillar trim panel (1) under the sealing lip of the trunk lid seal.
• Clip the bottom D-pillar trim panel (1) into the detents (2).
• Clip in the clip (3).
• Tighten down screw (4).

TIGHTENING TORQUES SPECIFICATION

Bottom D-pillar trim panel
Torx thermoplastic oval-head screw	Tightening torque  2.7 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
