Installing left and right side trim

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the side trim

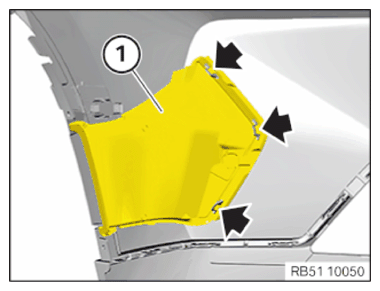

Install the trim (1) and engage it at the detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

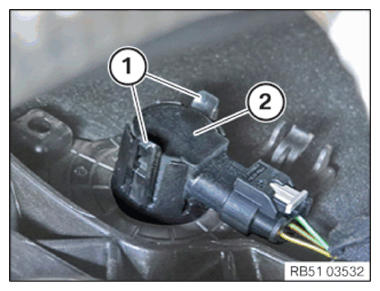

Install the ultrasonic sensor (2) and snap it in at the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

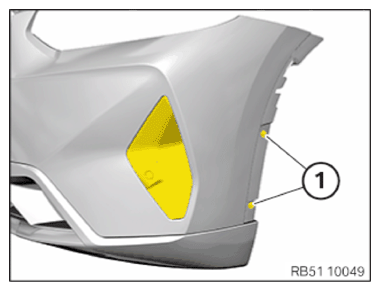

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Air duct to bumper cover
screw	Tightening torque 3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
