Install the footwell trim panel on the right

• Connect associated connector.

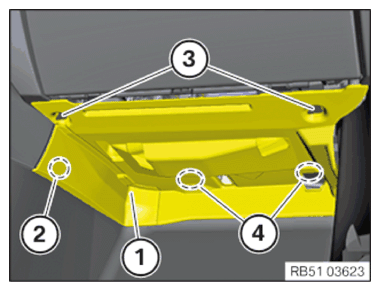

• Attach the right footwell trim panel (1) in the guides (4) and fold up.
• Clip the right footwell trim panel (1) in the area (2) into the center console.
• Insert locks (3) correctly and turn 90°.
