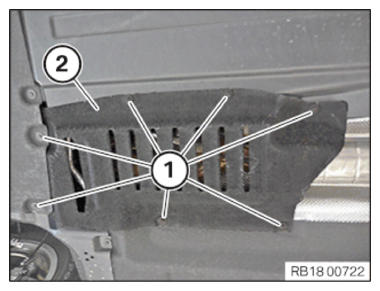

If installed: Install the underbody planking of the transmission on the side
- Install the underbody planking (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Undershield |
| screw |
Tightening torque
2.6 Nm |
| Plastic nut |
Tightening torque
2.6 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
