Disconnect hydraulic lines on the transmission
Disconnect hydraulic lines on the transmission

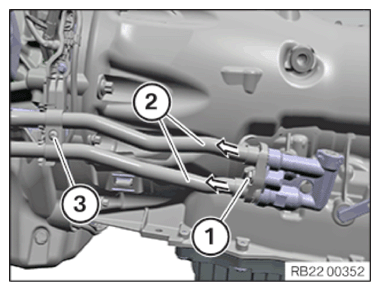

Loosen screw (1).
Loosen screw (3).
Release hydraulic lines (2) to the transmission oil cooler in the arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
