Installing both actuators

Check the seal (1) for damage; if necessary, replace the actuator (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The figure shows the rear of the engine.
Position both actuators.

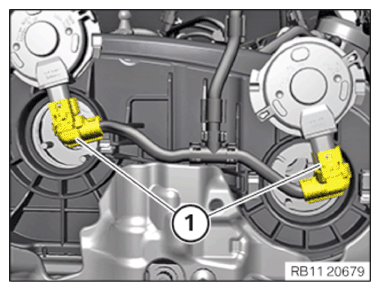

Connect and lock both connectors (1).
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The figure shows the rear of the engine.
Position special tool 2 360 895 correctly on the actuator (1) of the exhaust side.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the actuator (1) of the exhaust side and turn in the arrow direction with the special tool 2 360 895 until the limit stops tap the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The figure shows the rear of the engine.
Position special tool 2 360 895 correctly on the actuator (1) of the intake side.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the actuator (1) of the intake side and turn in the arrow direction with the special tool 2 360 895 until the limit stops tap the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
