Grease brake pads, brake anchor plate and brake caliper with brake pad paste

NOTE: TECHNICAL INFORMATION
If brake pads are installed with an adhesive film, at this point they may only be cleaned and not  greased with brake pad paste!

• Clean contact surface (1) of the brake piston with brake cleaner and apply a thin coat of brake pad paste.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE DESCRIPTION

Brake block paste  * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.	3g, Bag	83192158851
	100g, Tube	83192158852
	5g, TU*	83230140233

• Check dust boots for damage; replace if necessary.
  NOTE: TECHNICAL INFORMATION
  If brake pads are installed with an adhesive film, at this point they may only be cleaned and not  greased with brake pad paste!

• Clean contact surface (1) of the brake piston with brake cleaner and apply a thin coat of brake pad paste.

  Courtesy of BMW OF NORTH AMERICA, INC.

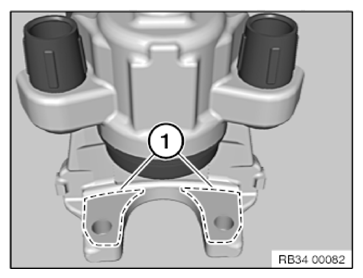

• Mount the sliding plates (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply a thin coat of brake pad paste to the T-head of the inner brake pad in the areas (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply a thin coat of brake pad paste to the T-head of the inner brake pad in the areas (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
If brake pads are installed with an adhesive film, they may not  be greased with brake pad paste at position 2!

• Apply a thin coat of brake pad paste to the contact surface in the areas (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
If brake pads are installed with an adhesive film, they may not  be greased with brake pad paste at position 2!

• Apply a thin coat of brake pad paste to the contact surface in the areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
