Remove the decorative strip on the right dashboard
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Remove center dashboard DECORATIVE STRIP .

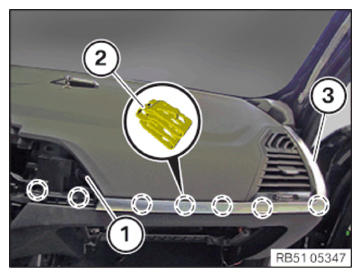

- Loosen screw (1).
- Unclip the decorative strip on the right (3) at the clamps (2) with the special tool 0 496 569 (00 9 325) .
- Unlock associated plug connections and disconnect.
- Remove the decorative strip on the right (1).
