Installing the trim panel for the pedal assembly

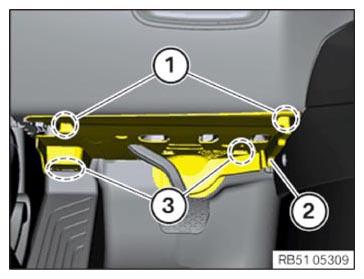

• Attach the trim panel for pedal assembly (2) and connect the corresponding connectors.
• Hook the trim panel for pedal assembly (2) in the guides (3) and fold it upwards.
  NOTE: TECHNICAL INFORMATION
  The screw caps of the trim panel must be correctly locked in place. This is the only way to ensure that the trim panel does not loosen and, as a result, tilt into the pedal area.
• Use the screw caps (1) correctly and turn 90° to lock.
