Removing the center console

Preliminary work

• Deactivate the 48 v ELECTRICAL SYSTEM .
• Disconnect all battery GROUND LEADS .
• Remove right footwell TRIM PANEL .
• Remove the pedal mechanism TRIM PANEL .
• Remove the center console TRIM .
• Remove the front STORAGE COMPARTMENT .
• Removing the rear center console TRIM. ..

• Release the screw (1) the left footwell.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release wiring harness from the center console.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the nuts (1) and screws (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Release wiring harness from the center console.

  Courtesy of BMW OF NORTH AMERICA, INC.

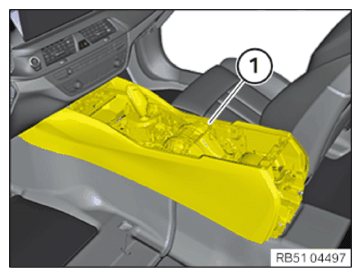

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.
• Remove the center console (1) to the rear and upwards, feeding out the wiring harness while doing this.

Courtesy of BMW OF NORTH AMERICA, INC.
