51 16 163 Removing and installing rear center console trim (X3)
>>
Installing the rear center console trim
Installing the rear center console trim
Position the rear center console trim (1).
Connect associated connector.
The connectors must engage audibly.

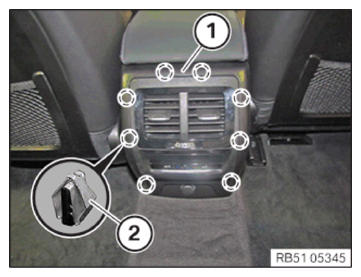

Clip in the center console trim on the rear (1) at the clamps (2).
