Installing the center console trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

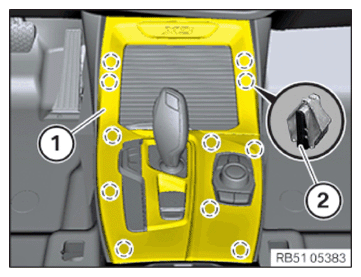

- Check the clamps (arrows) for damage and replace if necessary.
- Protect the gearshift lever against scratches.
- Guide in center console trim (1) on the gearshift lever.
- Connect respective connectors and lock.
- Feed in the center console trim (1) in front and clip it in at the clamps (2).
Follow-up work
- Reconnect all battery GROUND LEADS .
- Reactivate the 48 v ELECTRICAL SYSTEM .
