Installing the left and right ornamental grille on the front bumper cover on the side

→ Installing the ornamental grille on the front bumper cover on the side

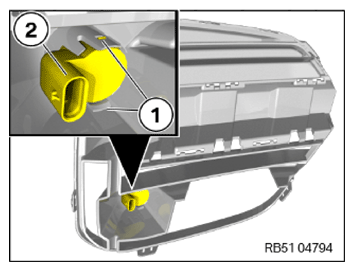

• Slightly spread apart the detents (1) and insert the ultrasonic sensor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

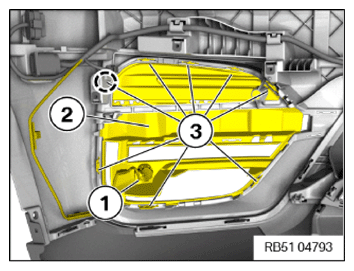

• Clip ornamental grille (2) into detents (3).
• Connect plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

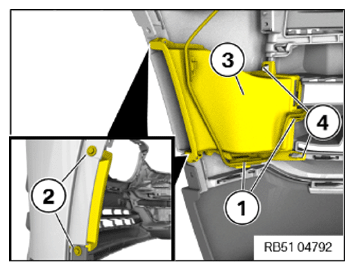

• Clip air duct (3) into detents (4).
• Clip vehicle wiring harness into clamp connections (1).
• Tighten screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Air duct to bumper cover
  Screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

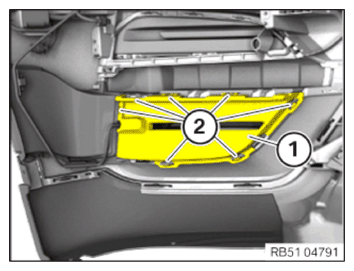

• Clip cover (1) of air inlet into detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.
