Installing the center console trim

Installing the center console trim

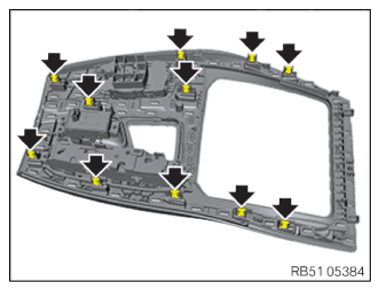

• Check the clamps (arrows) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Protect the gearshift lever against scratches.

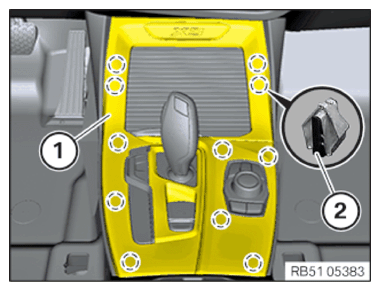

• Guide in center console trim (1) on the gearshift lever.
• Connect respective connectors and lock.
• Feed in the center console trim (1) in front and clip it in at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the center console trim

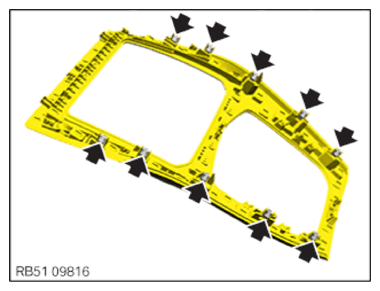

• Check the clamps (arrows) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

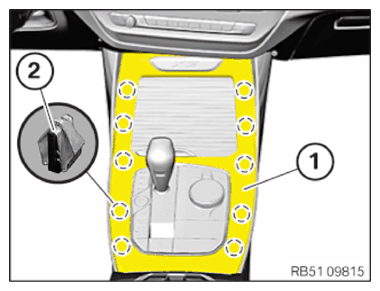

• Attach the center console trim (1) at the front and engage at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
