Installing the electrical vacuum pump

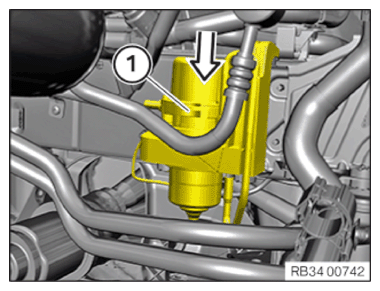

• Install the electrical vacuum pump (1) in the direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

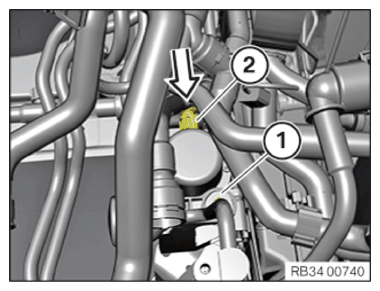

• Replace the screw (1).

  Parts:  Screw

• Insert screws (1) and tighten them.
  TIGHTENING TORQUES SPECIFICATION



  Electric vacuum pump to holder
  M6 Replace screws.	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

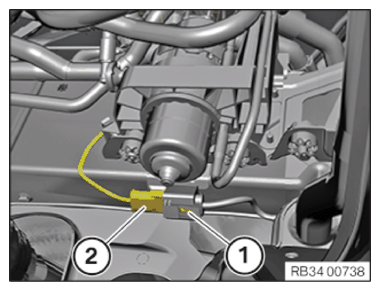

• Position the snap fastener (2) and lock it.
• Install the connector housing (2) in the holder.
• Connect the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the center UNDERBODY PROTECTION .
• Install the front UNDERBODY PROTECTION .
• RESET the electrical vacuum pump duration.
