Install the center console

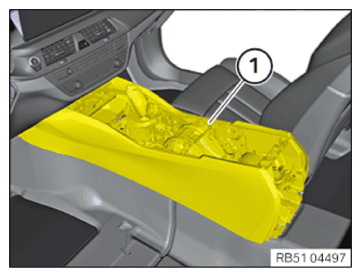

• Install center console (1) from top rear and feed in the wiring harness.
• Check for correct cable routing under the center console (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

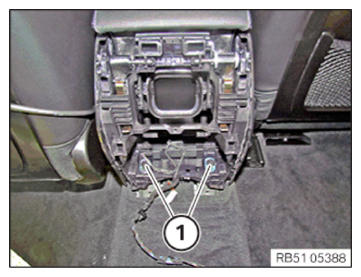

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Center console to holder
  M6x40 screw	Tightening torque	4.6 Nm
  Hexagon nut	Tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the wiring harness on the center console.

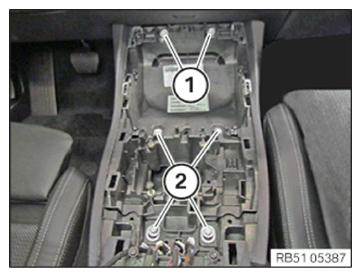

• Tighten the nuts (1) and bolts (2).
  TIGHTENING TORQUES SPECIFICATION



  Center console to holder
  M6x40 screw	Tightening torque	4.6 Nm
  Hexagon nut	Tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the wiring harness on the center console.

  Courtesy of BMW OF NORTH AMERICA, INC.

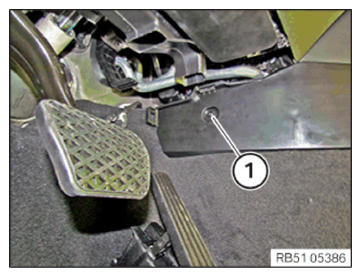

• Tighten the screw (1) the left footwell.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the rear center console TRIM .
• Install the front STORAGE COMPARTMENT .
• Install the center console TRIM .
• Install the pedal assembly TRIM PANEL .
• Install the right footwell TRIM PANEL .
• Reconnect all battery GROUND LEADS .
• Activate the 48 v ELECTRICAL SYSTEM .
