Installing The Trim For The Head-Up Display

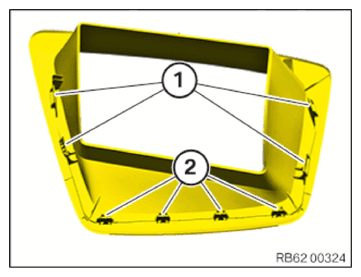

• Check detents (1) and metal clamps (2) for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

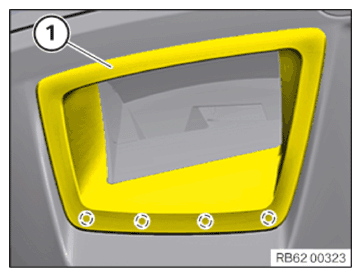

• Clip in the trim (1) for the Head-Up Display in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.
